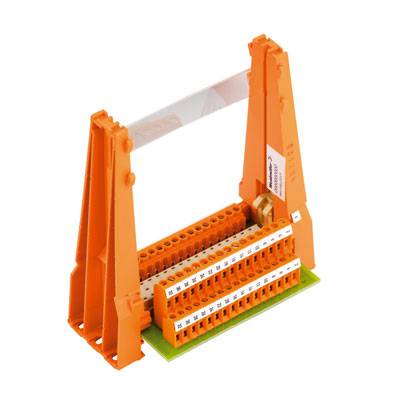

Weidmüller SKH E48 LP2/LP držák zásuvných karet (d x š x v) 69 x 131 x 144 mm 1 ks
EAN:
Označení výrobce:
Objednací číslo:
Kategorie produktu
držák zásuvných karet
Šířka
131 mm
V
144 mm
Délka
69 mm
Hmotnost
251 g
Datasheety: (PDF)
Počet
Celková cena (2 045,45 Kč / kus)
2 045,45 Kč
Bez DPH.
Hlavní benefity
Interface, Plug-in connector, acc. to DIN 41612 female, 48E
- SKH E48 LP2/LP
- Tento text byl přeložen strojově.
Dodatečné informace:
Technické parametry
- Max. Aufspannflache: 100 x 160 mm
- Kategorie produktu
držák zásuvných karet
- Šířka
131 mm
- V
144 mm
- Délka
69 mm
- Hmotnost
251 g
- Typ
SKH E48 LP2/LP
- Rozm.
(d x š x v) 69 x 131 x 144 mm
- Splňuje RoHS
ano
- UKCA
bezvýznamný
Ke stažení
List technických údajů
List technických údajů 195344 Weidmüller SKH E48 LP2/LP držák zásuvných karet (d x š x v) 69 x 131 x 144 mm 1 ks
Návod k obsluze a bezpečnostní pokyny
Návod k obsluze a bezpečnostní pokyny 195344 Weidmüller SKH E48 LP2/LP držák zásuvných karet (d x š x v) 69 x 131 x 144 mm 1 ks
Popis
Plug-in card holders are used to adapt cards from the Euro format (19") to connectors in compliance with IEC 603/DIN 41612 and DIN 41617.
Plug-in card holders consist of the following components: Circuit board with standard connectors and inserts with clamping-yoke connection.Flange housing and holder/pull-out mechanism for the circuit card.Plug-in card and mounting foot for attaching to mounting rail or directly to panel.
The plug-in card holders are normally used in the following cases:For quick adaptation in industrial applications of different 19" modules, and for avoiding the expense of a 19"rack.When there are only a few cards to install and connect.The circuit board is located in a remote position where the cabling cannot be easily handled.An older system needs to be updated with additional electronics modules.For test devices, production processes and laboratories: where circuit boards needs to be swapped out quicklyand connections must be easy to handle.
Plug-in card holders consist of the following components: Circuit board with standard connectors and inserts with clamping-yoke connection.Flange housing and holder/pull-out mechanism for the circuit card.Plug-in card and mounting foot for attaching to mounting rail or directly to panel.
The plug-in card holders are normally used in the following cases:For quick adaptation in industrial applications of different 19" modules, and for avoiding the expense of a 19"rack.When there are only a few cards to install and connect.The circuit board is located in a remote position where the cabling cannot be easily handled.An older system needs to be updated with additional electronics modules.For test devices, production processes and laboratories: where circuit boards needs to be swapped out quicklyand connections must be easy to handle.
