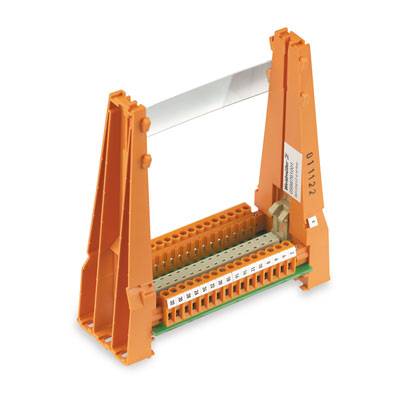

Weidmüller SKH D32 LP 5/16 RH2 držák zásuvných karet (d x š x v) 50.8 x 131 x 144 mm 1 ks
EAN:
Označení výrobce:
Objednací číslo:
Kategorie produktu
držák zásuvných karet
Šířka
131 mm
V
144 mm
Délka
50.8 mm
Hmotnost
186 g
Datasheety: (PDF)
Množství (Ks)
Sleva
Cena balení (Bez DPH.)
1
-
1 619,01 Kč
3
3% = 44,84 Kč
1 574,17 Kč
5
4% = 62,82 Kč
1 556,19 Kč
10
5% = 74,80 Kč
1 544,21 Kč
25
5% = 88,24 Kč
1 530,77 Kč
Množstevní slevy se liší podle prodejce
Ušetříte 0,00 Kč
Počet
Celková cena (1 619,01 Kč / kus)
1 619,01 Kč
Bez DPH.
Hlavní benefity
Interface, Plug-in connector, acc. to DIN 41612 female, 32D
- SKH D32 LP 5/16 RH2
- Tento text byl přeložen strojově.
Dodatečné informace:
Technické parametry
- Max. Aufspannflache: 100 x 160 mm
- Kategorie produktu
držák zásuvných karet
- Šířka
131 mm
- V
144 mm
- Délka
50.8 mm
- Hmotnost
186 g
- Typ
SKH D32 LP 5/16 RH2
- Rozm.
(d x š x v) 50.8 x 131 x 144 mm
- Splňuje RoHS
ano
DIN rail (top hat rail) 35 mm
131
51 mm
144 mm
4 A
250 V
32
Screw connection
2
- UKCA
Ano
Ke stažení
List technických údajů
List technických údajů 195328 Weidmüller SKH D32 LP 5/16 RH2 držák zásuvných karet (d x š x v) 50.8 x 131 x 144 mm 1 ks
Návod k obsluze a bezpečnostní pokyny
Návod k obsluze a bezpečnostní pokyny 195328 Weidmüller SKH D32 LP 5/16 RH2 držák zásuvných karet (d x š x v) 50.8 x 131 x 144 mm 1 ks
Popis
Plug-in card holders are used to adapt cards from the Euro format (19") to connectors in compliance with IEC 603/DIN 41612 and DIN 41617.
Plug-in card holders consist of the following components: Circuit board with standard connectors and inserts with clamping-yoke connection.Flange housing and holder/pull-out mechanism for the circuit card.Plug-in card and mounting foot for attaching to mounting rail or directly to panel.
The plug-in card holders are normally used in the following cases:For quick adaptation in industrial applications of different 19" modules, and for avoiding the expense of a 19"rack.When there are only a few cards to install and connect.The circuit board is located in a remote position where the cabling cannot be easily handled.An older system needs to be updated with additional electronics modules.For test devices, production processes and laboratories: where circuit boards needs to be swapped out quicklyand connections must be easy to handle.
Plug-in card holders consist of the following components: Circuit board with standard connectors and inserts with clamping-yoke connection.Flange housing and holder/pull-out mechanism for the circuit card.Plug-in card and mounting foot for attaching to mounting rail or directly to panel.
The plug-in card holders are normally used in the following cases:For quick adaptation in industrial applications of different 19" modules, and for avoiding the expense of a 19"rack.When there are only a few cards to install and connect.The circuit board is located in a remote position where the cabling cannot be easily handled.An older system needs to be updated with additional electronics modules.For test devices, production processes and laboratories: where circuit boards needs to be swapped out quicklyand connections must be easy to handle.
