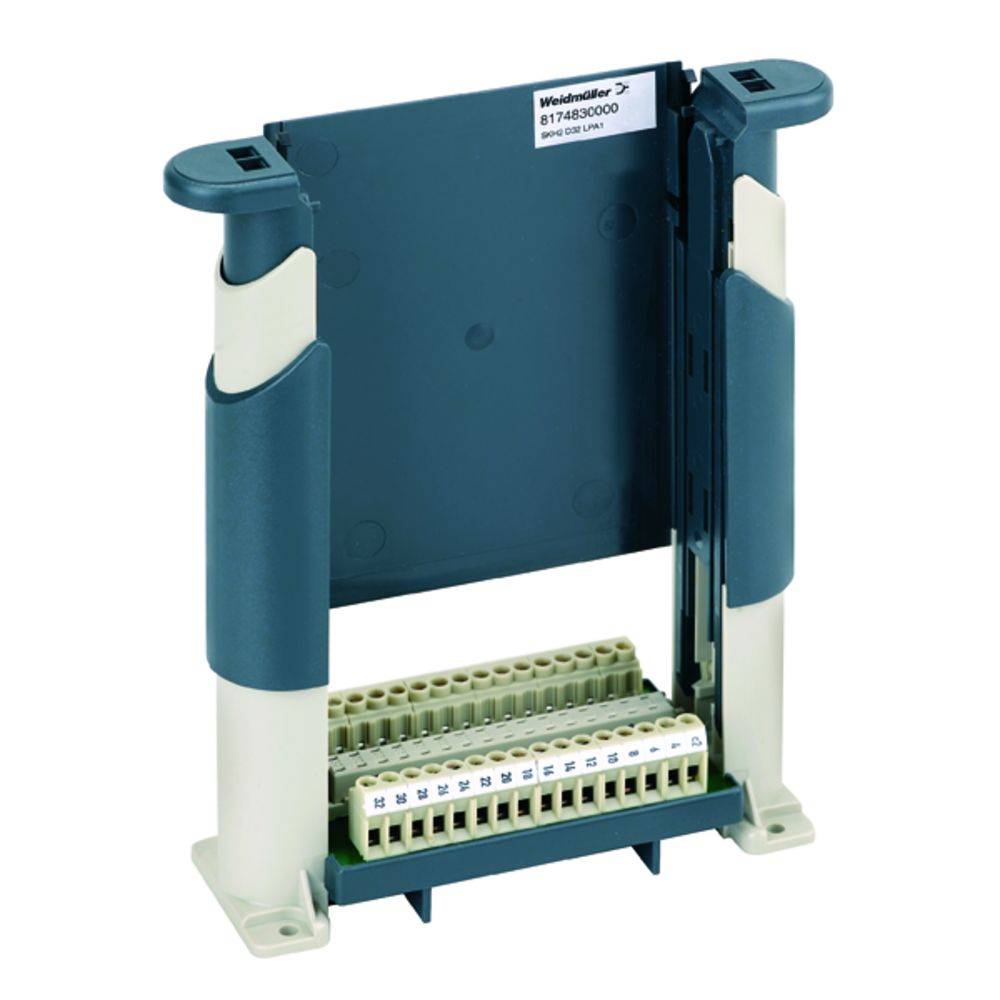

Weidmüller SKH2 D32 LP držák zásuvných karet (d x š x v) 55 x 160 x 192.5 mm 1 ks
EAN:
Označení výrobce:
Objednací číslo:
Kategorie produktu
držák zásuvných karet
Šířka
160 mm
V
192.5 mm
Délka
55 mm
Hmotnost
340 g
Datasheety: (PDF)
Množství (Ks)
Sleva
Cena balení (Bez DPH.)
1
-
1 362,81 Kč
3
3% = 37,75 Kč
1 325,06 Kč
5
4% = 52,88 Kč
1 309,93 Kč
10
5% = 62,96 Kč
1 299,85 Kč
25
5% = 74,27 Kč
1 288,54 Kč
Množstevní slevy se liší podle prodejce
Ušetříte 0,00 Kč
Počet
Celková cena (1 362,81 Kč / kus)
1 362,81 Kč
Bez DPH.
Hlavní benefity
Interface, Plug-in connector, acc. to DIN 41612 female, 32D
- SKH2 D32 LP
- Tento text byl přeložen strojově.
Dodatečné informace:
Technické parametry
- Max. Aufspannflache: 100 x 160 mm
- Kategorie produktu
držák zásuvných karet
- Šířka
160 mm
- V
192.5 mm
- Délka
55 mm
- Hmotnost
340 g
- Typ
SKH2 D32 LP
- Rozm.
(d x š x v) 55 x 160 x 192.5 mm
- Splňuje RoHS
ano
Ke stažení
List technických údajů
List technických údajů 257924 Weidmüller SKH2 D32 LP držák zásuvných karet (d x š x v) 55 x 160 x 192.5 mm 1 ks
Návod k obsluze a bezpečnostní pokyny
Návod k obsluze a bezpečnostní pokyny 257924 Weidmüller SKH2 D32 LP držák zásuvných karet (d x š x v) 55 x 160 x 192.5 mm 1 ks
Popis
Plug-in card holders are used to adapt cards from the Euro format (19") to connectors in compliance with IEC 603/DIN 41612 and DIN 41617.
Plug-in card holders consist of the following components: Circuit board with standard connectors and inserts with clamping-yoke connection.Flange housing and holder/pull-out mechanism for the circuit card.Plug-in card and mounting foot for attaching to mounting rail or directly to panel.
The plug-in card holders are normally used in the following cases:For quick adaptation in industrial applications of different 19" modules, and for avoiding the expense of a 19"rack.When there are only a few cards to install and connect.The circuit board is located in a remote position where the cabling cannot be easily handled.An older system needs to be updated with additional electronics modules.For test devices, production processes and laboratories: where circuit boards needs to be swapped out quicklyand connections must be easy to handle.
Plug-in card holders consist of the following components: Circuit board with standard connectors and inserts with clamping-yoke connection.Flange housing and holder/pull-out mechanism for the circuit card.Plug-in card and mounting foot for attaching to mounting rail or directly to panel.
The plug-in card holders are normally used in the following cases:For quick adaptation in industrial applications of different 19" modules, and for avoiding the expense of a 19"rack.When there are only a few cards to install and connect.The circuit board is located in a remote position where the cabling cannot be easily handled.An older system needs to be updated with additional electronics modules.For test devices, production processes and laboratories: where circuit boards needs to be swapped out quicklyand connections must be easy to handle.
