1/5
Ilustrační obrázek
Siemens 3RW3028-1BB14 3RW30281BB14 soft startér Výkon motoru při 400 V 18.5 kW Výkon motoru při 230 V 11 kW 400 V/AC Jme
EAN:
Označení výrobce:
Objednací číslo:
Datasheety: (PDF)
Počet
Celková cena (12 210,74 Kč / kus)
12 210,74 Kč
Bez DPH.
Doprava zdarma
14denní lhůta pro vrácení zboží je zahrnuta v ceně
Technické parametry
- Napětí motoru
200..480 V
- Kategorie produktu
soft startér
- Připojovací proud
38 A
- Výkon motoru při 230 V
11 kW
- Výkon motoru při 400 V
18.5 kW
- Jmenovité napětí
400 V/AC
- Číslo výrobce
3RW30281BB14
- Jmenovitý proud
38 A
- Jmenovitý proud - filtr
38 A
- Typ
3RW3028-1BB14
- Výkon motoru při 230 V/ 400 V
18.5 kW

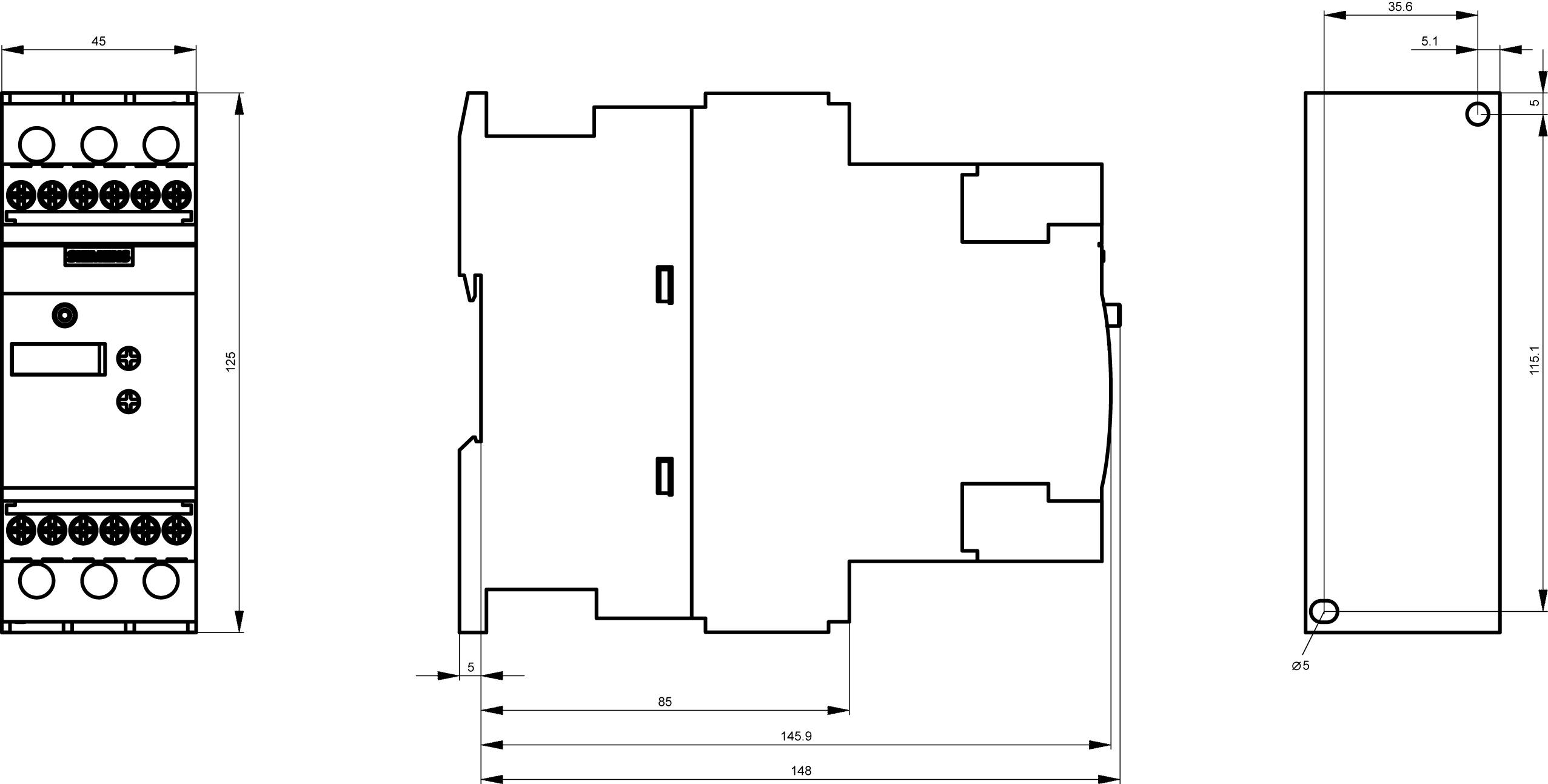

- Rozm.
(d x š x v) 150 x 45 x 125 mm
- Připojení
šroubová svorka
- Šířka
45 mm
- V
125 mm
- Délka
150 mm
- Hloubka
150 mm
- Max. teplota
40 °C
Single direction
110-230 V
110-230 V
110-230 V
IP20
Other
38 A
11 kW
18.5 kW
40 °C
NE
AC/DC
- UKCA
Ano
Ke stažení
List technických údajů
List technických údajů 197597 Siemens 3RW3028-1BB14 3RW30281BB14 soft startér Výkon motoru při 400 V 18.5 kW Výkon motoru při 230 V 11 kW 400 V/AC Jme
Návod k obsluze a bezpečnostní pokyny
Návod k obsluze a bezpečnostní pokyny 197597 Siemens 3RW3028-1BB14 3RW30281BB14 soft startér Výkon motoru při 400 V 18.5 kW Výkon motoru při 230 V 11 kW 400 V/AC Jme
Popis
SIRIUS soft starter S0 38 A, 18.5 kW/400 V, 40 °C 200-480 V AC, 110-230 V AC/DC Screw terminals Soft starter SIRIUS 3RW30 for standard applications for the soft starting of three-phase asynchronous motors.

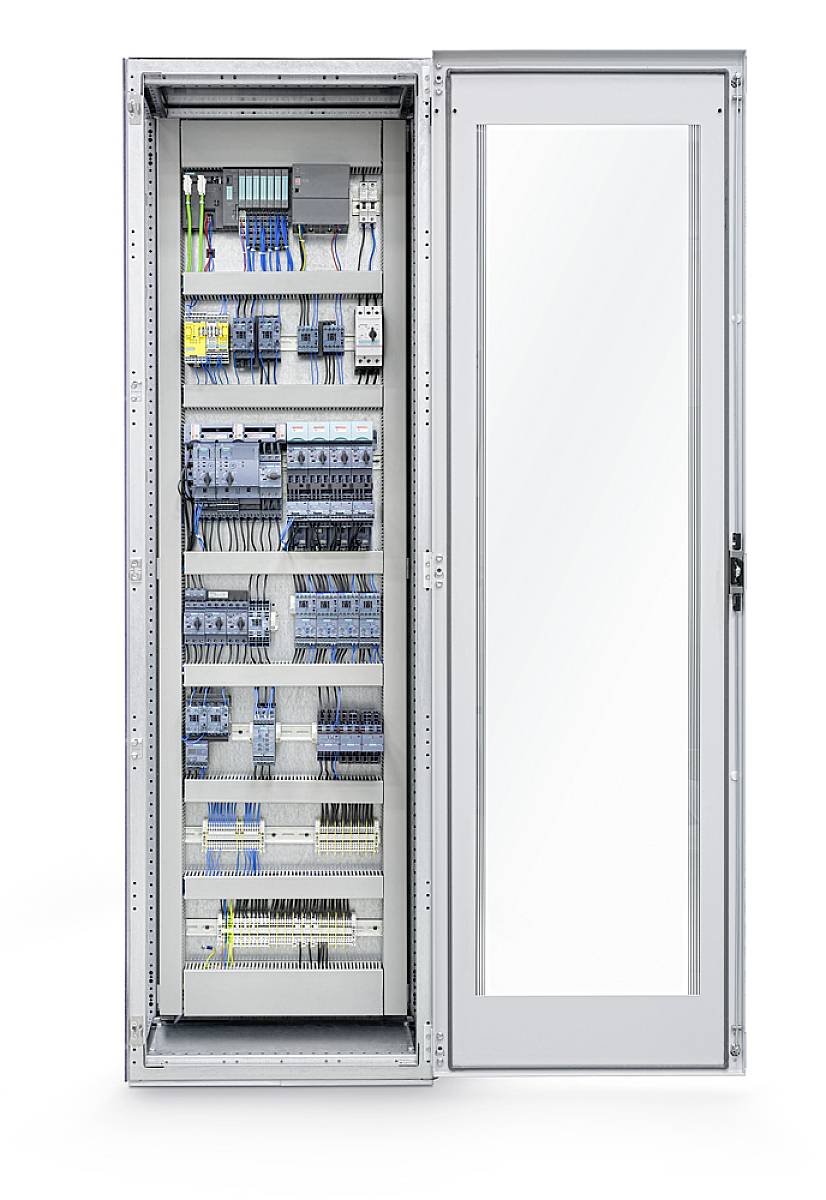

Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA).
The 3RW soft starters are available for supply systems up to 690 V in a wide performance range with different control supply voltages and all with both screw and spring-loaded terminals. For the 3RW30/40 there are additional versions with 24 V control supply voltage. Some of the 3RW40 up to size S3, and all 3RW44 units also offer thermistor motor protection.

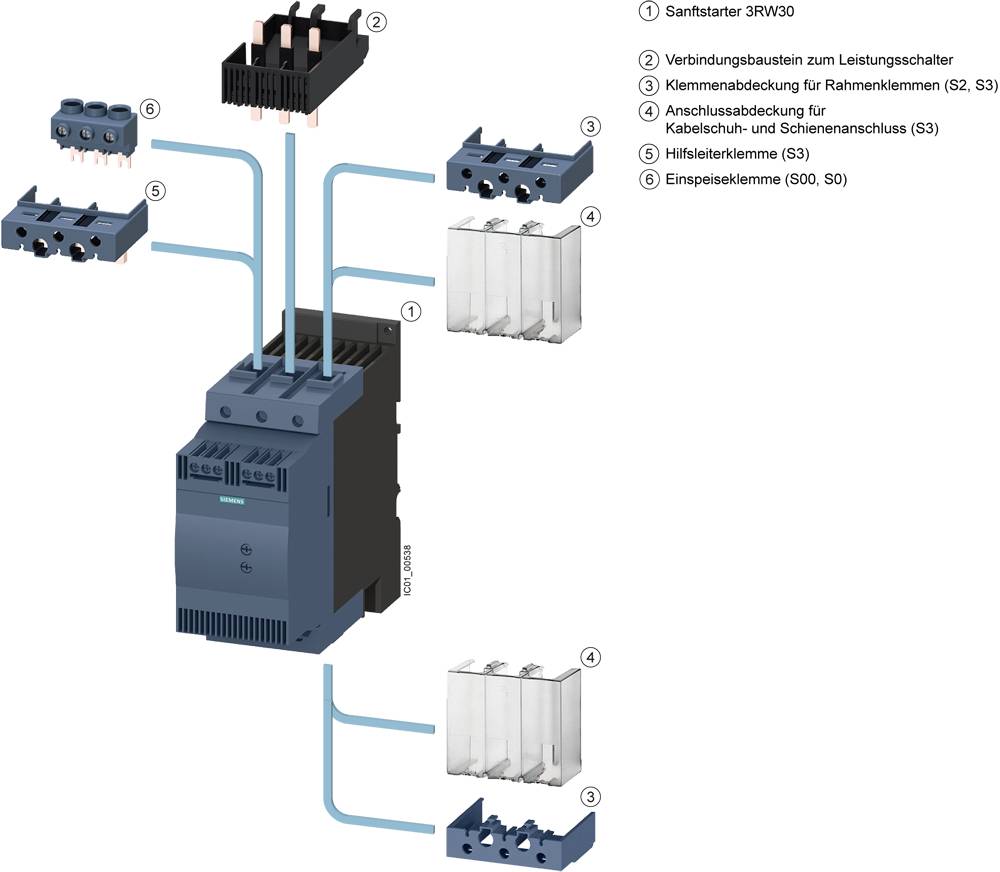

With the optional link module, the soft starters can be attached to the circuit breakers, even for the versions with spring-loaded terminals.
Simple, efficient and always up to date - SIRIUS modular system.
Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA).
The 3RW soft starters are available for supply systems up to 690 V in a wide performance range with different control supply voltages and all with both screw and spring-loaded terminals. For the 3RW30/40 there are additional versions with 24 V control supply voltage. Some of the 3RW40 up to size S3, and all 3RW44 units also offer thermistor motor protection.
With the optional link module, the soft starters can be attached to the circuit breakers, even for the versions with spring-loaded terminals.
Simple, efficient and always up to date - SIRIUS modular system.
