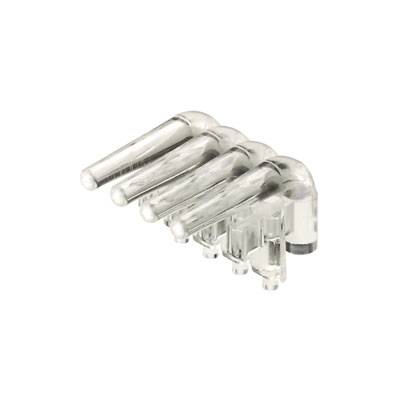

PCB plug-in connector, Accessories, Flood-light display, No. of poles: 1 SL 3.5 FLA 1.5/8 1597510000 Weidmüller Množství
EAN:
Označení výrobce:
Objednací číslo:
Hmotnost
3.22 g
Číslo výrobce
1597510000
Obsah
50 ks
Typ
SL 3.5 FLA 1.5/8
V
236 mm
Datasheety: (PDF)
Množství (Set(y))
Sleva
Cena balení (Bez DPH.)
1
-
1 362,81 Kč
3
3% = 113,25 Kč
1 325,06 Kč
5
4% = 264,40 Kč
1 309,93 Kč
10
5% = 629,60 Kč
1 299,85 Kč
25
5% = 1 856,75 Kč
1 288,54 Kč
Množstevní slevy se liší podle prodejce
Ušetříte 0,00 Kč
Počet (velikost balení 50 ks)
Celková cena (1 362,81 Kč / kus)
1 362,81 Kč
Bez DPH.
Už jen 5 Set(y) skladem!
Hlavní benefity
PCB plug-in connector, Accessories, Flood-light display, No. of poles: 1
Dodatečné informace:
Technické parametry
- Hmotnost
3.22 g
- Číslo výrobce
1597510000
- Obsah
50 ks
- Typ
SL 3.5 FLA 1.5/8
- V
236 mm
- Délka
38 mm
- Šířka
154 mm
- Průmyslové balení
Ano
- Typ
SL 3,5 FLA 1.5/8
- UKCA
bezvýznamný
Ke stažení
List technických údajů
List technických údajů 324246 PCB plug-in connector, Accessories, Flood-light display, No. of poles: 1 SL 3.5 FLA 1.5/8 1597510000 Weidmüller Množství
Návod k obsluze a bezpečnostní pokyny
Návod k obsluze a bezpečnostní pokyny 324246 PCB plug-in connector, Accessories, Flood-light display, No. of poles: 1 SL 3.5 FLA 1.5/8 1597510000 Weidmüller Množství
Popis
Effective: the link between LED and front panel.
Floodlight indicators allow users to monitor the switching states without requiring a special design: optical plastic directs the light from standard LEDs around a bend into the connectors or through the front plate.
The fibre-optic elements are simply clipped behind the relevant 90° bend male connectors (90° outlet direction). Versions with different incoming light beam heights achieve maximum light efficiency for LEDs with different designs or heights.
The advantages compared to conventional solutions:
No additional LED circuit board required behind the front panelNo "long-legged" LEDs with separate mounting requiredBent fibre-optic cable line for maximum light efficiencyUncomplicated front plate bore holes due to circular shape of outgoing light beamEasy to maintain correct clearance and creepage distance Can be partitioned for smaller pole numbers
The result: simplified manufacturing process, reduced costs and simplified design
Floodlight indicators allow users to monitor the switching states without requiring a special design: optical plastic directs the light from standard LEDs around a bend into the connectors or through the front plate.
The fibre-optic elements are simply clipped behind the relevant 90° bend male connectors (90° outlet direction). Versions with different incoming light beam heights achieve maximum light efficiency for LEDs with different designs or heights.
The advantages compared to conventional solutions:
No additional LED circuit board required behind the front panelNo "long-legged" LEDs with separate mounting requiredBent fibre-optic cable line for maximum light efficiencyUncomplicated front plate bore holes due to circular shape of outgoing light beamEasy to maintain correct clearance and creepage distance Can be partitioned for smaller pole numbers
The result: simplified manufacturing process, reduced costs and simplified design
