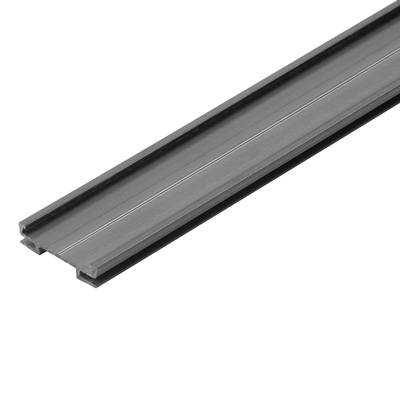

Weidmüller CH20M BUS-PROFIL TS 35X7.5/500 1248160000 Montážní lišta 500 mm 10 ks
EAN:
Označení výrobce:
Objednací číslo:
Kategorie produktu
Montážní lišta
Délka
500 mm
Šířka
25.1 mm
Barva
černá
V
6.2 mm
Datasheety: (PDF)
Počet
Celková cena (1 m = 980,00 Kč)
4 900,00 Kč
Bez DPH.
Doprava zdarma
Už jen 5 Set(y) skladem!
Hlavní benefity
Electronics housings, OMNIMATE Housing - series CH20M , Support section for bus PCB, Width: 25,1 mm
Dodatečné informace:
Technické parametry
- Hořlavost: podle UL 94 V-0
- izolační: PA 66
- izolační skupina: II
- odolnost proti zkratům (funkce CTI): ≥ 500
- Kategorie produktu
Montážní lišta
- Barva
černá
- Délka
500 mm
- Šířka
25.1 mm
- V
6.2 mm
- Rozm.
(d x š x v) 500 x 25.1 x 6.2 mm
- Hmotnost
32.1 g
- Průmyslové balení
Ano
- Obsah
10 ks
- Typ
CH20M BUS-PROFIL TS 35X7.5/500
- Splňuje RoHS
ano
- UKCA
bezvýznamný
Ke stažení
List technických údajů
List technických údajů 320446 Weidmüller CH20M BUS-PROFIL TS 35X7.5/500 1248160000 Montážní lišta 500 mm 10 ks
Návod k obsluze a bezpečnostní pokyny
Návod k obsluze a bezpečnostní pokyny 320446 Weidmüller CH20M BUS-PROFIL TS 35X7.5/500 1248160000 Montážní lišta 500 mm 10 ks
Popis
The integrated rail bus for the modular electronics housing system
When supplying, connecting or distributing within modular applications, the rail bus can replace the tedious individual wiring process with a flexible and uninterrupted system-wide solution.
The system bus is securely integrated within the 35-mm standard mounting rail. The SMD-bus contact block can be reflow-soldered so that it can be completely automatically processed during the component assembly. The resistant, gold-plated contact surfaces ensure a permanent and reliable contact for all housing widths.
Unlimited scalability The integrated connection solution covers all system widths: from the 6-mm slice to the 67-mm large-area housing.Easy to service during installation It's easy to replace a module, even in existing modules groups – without any influence on the neighbouring modules.Universal integration The uninterrupted system bus is securely integrated within the 35-mm standard mounting rail.Maximum availability Five fully-galvanized and partially gold-plated twin-arched contacts are used to establish a permanent contact to the rail bus. THR solder flanges ensure that the connection to the circuit board is stable.
When supplying, connecting or distributing within modular applications, the rail bus can replace the tedious individual wiring process with a flexible and uninterrupted system-wide solution.
The system bus is securely integrated within the 35-mm standard mounting rail. The SMD-bus contact block can be reflow-soldered so that it can be completely automatically processed during the component assembly. The resistant, gold-plated contact surfaces ensure a permanent and reliable contact for all housing widths.
Unlimited scalability The integrated connection solution covers all system widths: from the 6-mm slice to the 67-mm large-area housing.Easy to service during installation It's easy to replace a module, even in existing modules groups – without any influence on the neighbouring modules.Universal integration The uninterrupted system bus is securely integrated within the 35-mm standard mounting rail.Maximum availability Five fully-galvanized and partially gold-plated twin-arched contacts are used to establish a permanent contact to the rail bus. THR solder flanges ensure that the connection to the circuit board is stable.
