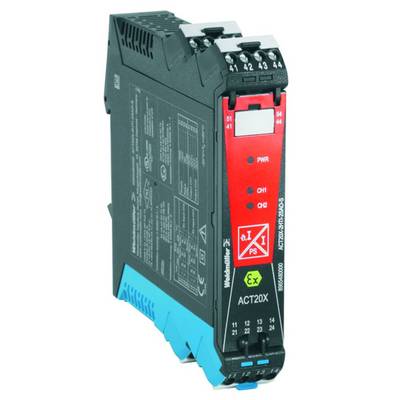

Weidmüller ACT20X-HUI-SAO-S 8965490000 měřicí transformátor 1 ks
EAN:
Označení výrobce:
Objednací číslo:
Kategorie produktu
měřicí transformátor
Typ
ACT20X-HUI-SAO-S
Rozm.
(d x š) 119.2 mm x 22.5 mm
Obsah
1 ks
Šířka
22.5 mm
Datasheety: (PDF)
Počet
Celková cena (10 053,72 Kč / kus)
10 053,72 Kč
Bez DPH.
Doprava zdarma
Už jen 5 Ks skladem!
Hlavní benefity
ACT20X, EX signal isolating converter, 1-channel version,
- ACT20X-HUI-SAO-S
Technické parametry
- Typ
ACT20X-HUI-SAO-S
- Kategorie produktu
měřicí transformátor
- Rozm.
(d x š) 119.2 mm x 22.5 mm
- Obsah
1 ks
- Šířka
22.5 mm
- Délka
119.2 mm
- Splňuje RoHS
ano
- Hloubka
113.6 mm
- Typ
ACT20X-HUI-SAO-S
- Hmotnost
180 g
22.5
119.2 mm
113.6 mm
3 W
-20-60 °C
Screw connection
IP20
2
- UKCA
Ano
Ke stažení
List technických údajů
List technických údajů 258861 Weidmüller ACT20X-HUI-SAO-S 8965490000 měřicí transformátor 1 ks
Návod k obsluze a bezpečnostní pokyny
Návod k obsluze a bezpečnostní pokyny 258861 Weidmüller ACT20X-HUI-SAO-S 8965490000 měřicí transformátor 1 ks
Popis
The ACT 20X HUI-SAO-S/ SAO-LP universal measurement and signal isolating converters can be configured individually.
Temperature signals from PT100 sensors and thermocouples as well as analogue DC current and voltage signals can be recorded from Ex zone 0.
On the output side, optional current/voltage (SAO-S) or 4...20 mA current loop signals (SAO-LP / SAO-S) are provided for the safe zone.
The ACT20X-HUI-SAO-S also has a relay output for configuring its switching threshold.
An integrated alarm contact is available on this device for issuing an alert in the event of a malfunction. This makes troubleshooting easier and also increases system availability.
The power supply of the signal isolating converter is either done using the integrated power supply (SAO-S) or alternatively over the output-side current loop (SAO-LP).
The rail mountable devices are designed with one channel, and are optionally available in widths of 12.5 mm (SAO-LP) or 22.5 mm (SAO-S).
Temperature signals from PT100 sensors and thermocouples as well as analogue DC current and voltage signals can be recorded from Ex zone 0.
On the output side, optional current/voltage (SAO-S) or 4...20 mA current loop signals (SAO-LP / SAO-S) are provided for the safe zone.
The ACT20X-HUI-SAO-S also has a relay output for configuring its switching threshold.
An integrated alarm contact is available on this device for issuing an alert in the event of a malfunction. This makes troubleshooting easier and also increases system availability.
The power supply of the signal isolating converter is either done using the integrated power supply (SAO-S) or alternatively over the output-side current loop (SAO-LP).
The rail mountable devices are designed with one channel, and are optionally available in widths of 12.5 mm (SAO-LP) or 22.5 mm (SAO-S).
