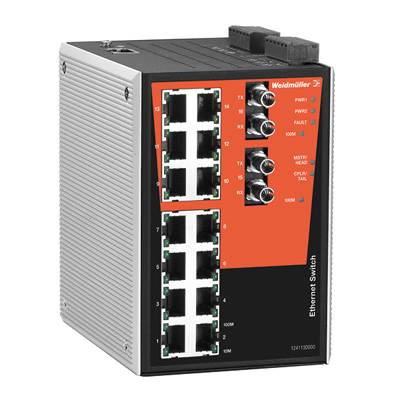

Weidmüller 1286840000 IE-SW-PL16MT-14TX-2ST průmyslový ethernetový switch 100 MBit/s funkce PoE
EAN:
Označení výrobce:
Objednací číslo:
Datasheety: (PDF)
Počet
Celková cena (24 745,00 Kč / kus)
24 745,00 Kč
Včetně DPH.
Doprava zdarma
Už jen 5 Ks skladem!
Hlavní benefity
Network switch, managed, Fast Ethernet, Number of ports: 14x RJ45, 2 * ST Multi-mode, IP 30, -40 °C...+75 °C
- IE-SW-PL16MT-14TX-2ST
Technické parametry
- Kategorie produktu
průmyslový ethernetový switch
- Přenosová rychlost přes LAN
100 MBit/s
- Přenosová rychlost
100 MBit/s
- Základní funkce
Managed Switch
- Ethernetové porty
14
- IEEE 802.3at PoE
4
- 0/100 MBit/s porty
14 x
- LWL porty
2
- Vlastnosti
funkce PoE
- Hmotnost
1586 g
- Šířka
94 mm
- V
135 mm
- Hloubka
142.7 mm
- Typ
IE-SW-PL16MT-14TX-2ST
- Rozhraní
RJ45
- Max. okolní teplota
75 °C
- Min. okolní teplota
-40 °C
Ke stažení
List technických údajů
List technických údajů 202267 Weidmüller 1286840000 IE-SW-PL16MT-14TX-2ST průmyslový ethernetový switch 100 MBit/s funkce PoE
Návod k obsluze a bezpečnostní pokyny
Návod k obsluze a bezpečnostní pokyny 202267 Weidmüller 1286840000 IE-SW-PL16MT-14TX-2ST průmyslový ethernetový switch 100 MBit/s funkce PoE
Popis
Weidmüller's Premium Line consists of high-end switches with advanced management and security features. It is suitable for demanding network solutions. The equipment can be delivered with Fast Ethernet or Gigabit Ethernet ports. One variety is fitted with Fast Ethernet and Power-over-Ethernet ports. With their advanced ring redundancy technology (recovery time ≤ 20 ms), these devices raise the reliability and availability of your industrial networks. The optional SFP transceiver can be fitted offering a high degree of flexibility. Gigabit versions permit use in networks with a high volume of communications
Managed Fast Ethernet versions in a high-quality metal housing (IP 30)Managed Power-over-Ethernet (PoE) switch with 6 Fast Ethernet ports, 4 of them PoE+ portsVersions with 10 or 18 ports and Gigabit uplink portsFull Gigabit switch with 9 portsSupports all standard TCP/IP-based protocols in industrial networks (for example Ethernet/IP, Modbus/TCP)Integrated redundancy mechanisms (recovery time ≤ 20 ms) increase the reliability in network ring structuresApprovals: CE, FCC, cULus, Class I Div. 2 / ATEX, DNV / GL
Managed Fast Ethernet versions in a high-quality metal housing (IP 30)Managed Power-over-Ethernet (PoE) switch with 6 Fast Ethernet ports, 4 of them PoE+ portsVersions with 10 or 18 ports and Gigabit uplink portsFull Gigabit switch with 9 portsSupports all standard TCP/IP-based protocols in industrial networks (for example Ethernet/IP, Modbus/TCP)Integrated redundancy mechanisms (recovery time ≤ 20 ms) increase the reliability in network ring structuresApprovals: CE, FCC, cULus, Class I Div. 2 / ATEX, DNV / GL
