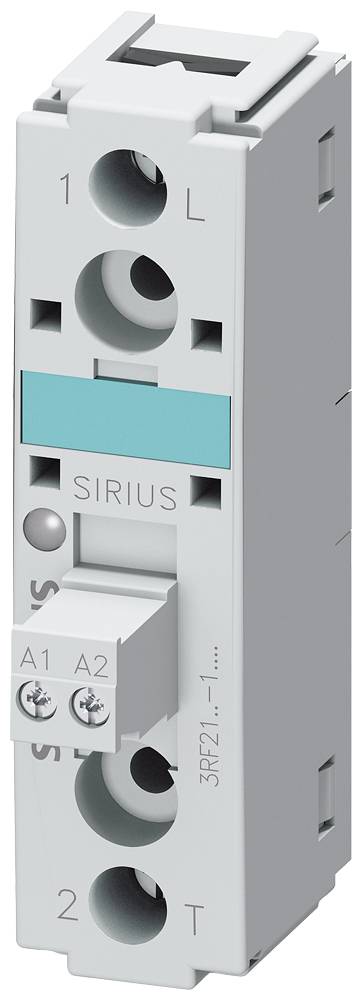

Siemens polovodičové relé 3RF21901AA45 90 A Spínací napětí (max.): 600 V/AC 1 ks
EAN:
Označení výrobce:
Objednací číslo:
Kategorie produktu
polovodičové relé
Řídicí napětí (min.)
4 V/DC
Řídicí napětí (max.)
30 V/DC
Spínací napětí (max.)
600 V/AC
Zatěžovací proud
90 A
Datasheety: (PDF)
Celková cena (1 652,07 Kč / kus)
1 652,07 Kč
Bez DPH.
Technické parametry
- Frekvence: 50 / 60 Hz
- Izolační napětí: 600 V
- 1000 V/μs
- 1200 V
- Kategorie produktu
polovodičové relé
- Typ
3RF2190-1AA45
- Řídicí napětí (min.)
4 V/DC
- Řídicí napětí (max.)
30 V/DC
- Rozsah řídicího napětí
4 - 30 V/DC
- Spínací napětí (min.)
48 V/AC
- Spínací napětí (max.)
600 V/AC
- Zatěžovací proud
90 A
IP20
- Splňuje RoHS
ano
- Obsah
1 ks
- Typ
3RF2190-1AA45
- Provozní napětí
48 - 600 V/AC
1
ANO
90 A
DC
50 A
- UKCA
Ano
Ke stažení
List technických údajů
List technických údajů 185996 Siemens polovodičové relé 3RF21901AA45 90 A Spínací napětí (max.): 600 V/AC 1 ks
List technických údajů 185996 Siemens polovodičové relé 3RF21901AA45 90 A Spínací napětí (max.): 600 V/AC 1 ks
Návod k obsluze a bezpečnostní pokyny
Návod k obsluze a bezpečnostní pokyny 185996 Siemens polovodičové relé 3RF21901AA45 90 A Spínací napětí (max.): 600 V/AC 1 ks
Prohlášení o shodě
Prohlášení o shodě 185996 Siemens polovodičové relé 3RF21901AA45 90 A Spínací napětí (max.): 600 V/AC 1 ks
Popis
Semiconductor relay, 1-phase 3RF2 Overall width 22.5 mm, 90 A 48-600 V / 4-30 V DC screw terminal Blocking voltage 1200 V solid-state relay SIRIUS 3RF21 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state relays are available as single-phase devices in two widths, or as three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state relays are available as single-phase devices in two widths, or as three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
