Technické parametry
- Druh obalu
Piece
- Kategorie produktu
otočný spínač
- Vlastnosti
kovový přední prstenec
Vysoký lesk
- Typ osvětlení
bodové podsvícení
- Typ světelného zdroje
LED
- Typ sepnutí
otočný přepínač
- Barvy světla
bílá
- Barva
černá
bílá
- Barva pouzdra
bílá
- Potisk (motiv)
žádný
- Připojení
šroubovací
- Forma, tvar
Kulaté
- Funkce
s aretací

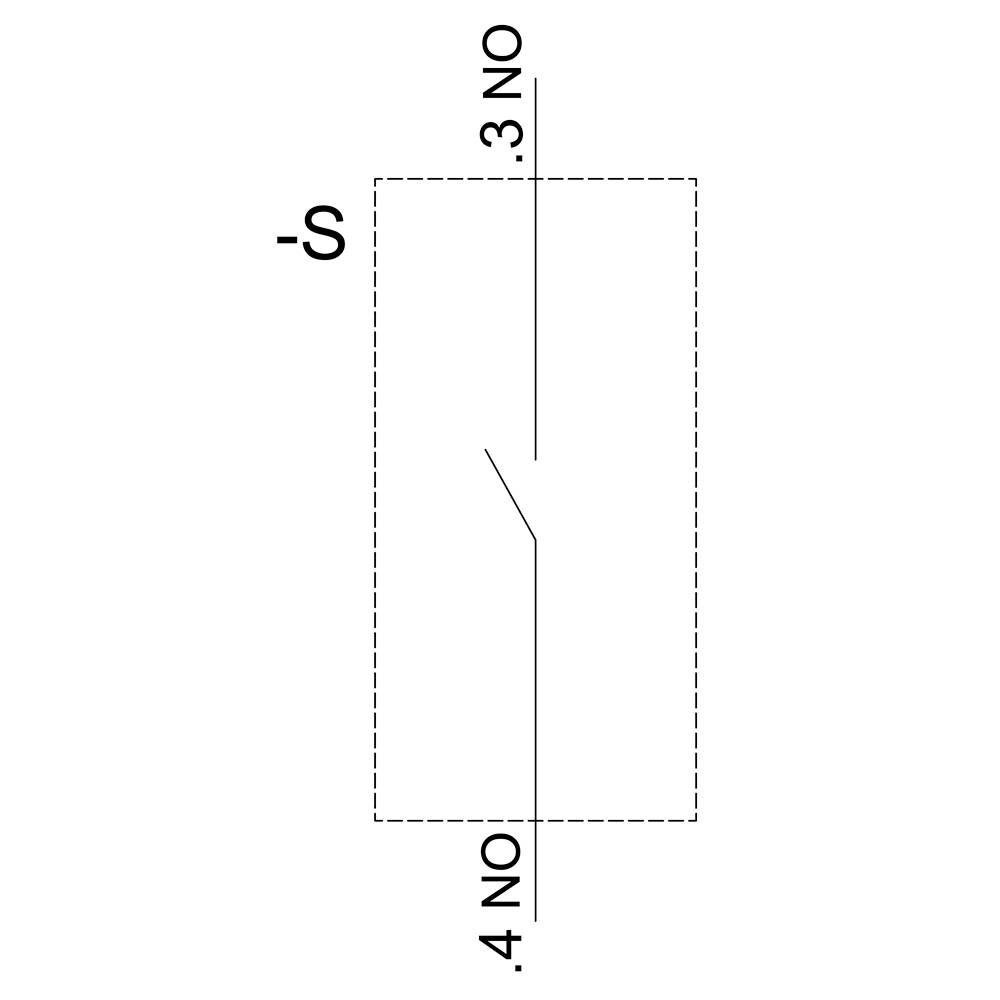

- Typ kontaktu
1 spínací kontakt
- Montážní Ø
22 mm
IP69K
- Min. teplota
-25 °C
- Max. teplota
+70 °C
- Spínací napětí
500 V
- Spínací úhel
1 x 90 °
- Přepínací pozice
1x vyp/zap
- V
32.3 mm
- (Ø)
22.3 mm
- Obsah
1 ks
- Rozm.
(Ø x v) 22.3 mm x 32.3 mm
- Splňuje RoHS
ano
- Hmotnost
0.0869 kg
- Hloubka
28.8 mm
- Typ
3SU1150-2BF60-1BA0
- součástí osvětlení
Ne
22.3 mm
White
2
ANO
NE
Other
32.3 mm
28.8 mm
IP67/IP69K
NE
Other
ANO
Wing knob
NE
0
1
0
Other
- UKCA
Ano
Ke stažení
List technických údajů
List technických údajů 1379604 Siemens 3SU11502BF601BA0 3SU1150-2BF60-1BA0 otočný spínač kovový přední prstenec, Vysoký lesk otočný přepínač černá, bíl
Návod k obsluze a bezpečnostní pokyny
Návod k obsluze a bezpečnostní pokyny 1379604 Siemens 3SU11502BF601BA0 3SU1150-2BF60-1BA0 otočný spínač kovový přední prstenec, Vysoký lesk otočný přepínač černá, bíl
Informace
Informace 1379604 Siemens 3SU11502BF601BA0 3SU1150-2BF60-1BA0 otočný spínač kovový přední prstenec, Vysoký lesk otočný přepínač černá, bíl
Popis
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, 2-4 switching positions, short/long selector or rotary knob, illuminated/non-illuminated (lighting can also be retrofitted), latching/momentary contact operation.
Note: Complete unit, delivery includes holders and modules.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Obsah balení
- Vč. Držák a kontaktní prvek.
