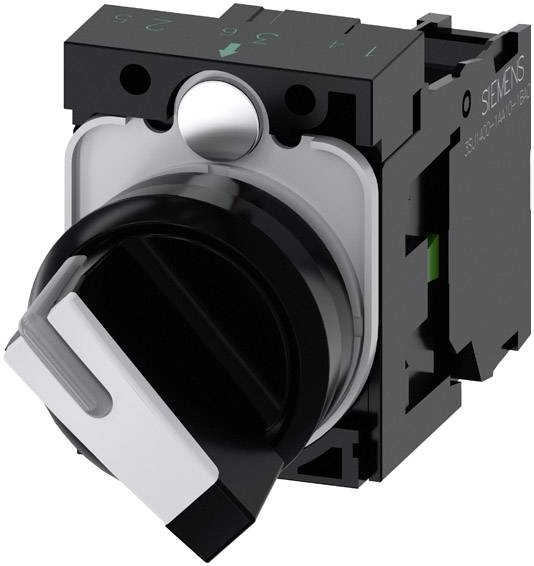

Siemens 3SU11002BF601BA0 3SU1100-2BF60-1BA0 kloubový spínač plastový přední prstenec otočný přepínač černá, bílá 1 x 90
EAN:
Označení výrobce:
Objednací číslo:
Datasheety: (PDF)
Množství (Ks)
Sleva
Cena balení (Bez DPH.)
1
-
747,93 Kč
3
4% = 32,53 Kč
715,40 Kč
Množstevní slevy se liší podle prodejce
Ušetříte 0,00 Kč
Počet
Celková cena (747,93 Kč / kus)
747,93 Kč
Bez DPH.
Technické parametry
- Druh obalu
Piece
- Kategorie produktu
kloubový spínač
- Vlastnosti
plastový přední prstenec
- Typ osvětlení
bodové podsvícení
- Typ sepnutí
otočný přepínač
- Barvy světla
bílá
- Barva
černá
bílá
- Ø tlačítka
22 mm
- Potisk (motiv)
označení šipkami
- Připojení
šroubovací
externí LED prvek
- Forma, tvar
Kulaté
- Montážní rozměry
22 mm
- Funkce
s aretací
- Typ kontaktu
1 spínací kontakt
- Mechanická životnost
1 000 000
- Elektrická životnost
10000000
- Montážní Ø
22 mm
IP66
IP67
IP69K
- Spínací úhel
1 x 90 °
- Přepínací pozice
1x vyp/zap
- Šířka
32.3 mm
- V
40 mm
- (Ø)
22 mm
- Obsah
1 ks
- Rozm.
(Ø x v) 22 mm x 40 mm
- Splňuje RoHS
ano
- Hmotnost
58 g
- Typ
3SU1100-2BF60-1BA0
- součástí osvětlení
Ne
22.3 mm
White
2
ANO
NE
Black
Screw connection
32.3 mm
28.8 mm
IP67/IP69K
NE
Plastic
ANO
Wing knob
NE
0
1
0
Other
- UKCA
Ano
Ke stažení
List technických údajů
List technických údajů 1379616 Siemens 3SU11002BF601BA0 3SU1100-2BF60-1BA0 kloubový spínač plastový přední prstenec otočný přepínač černá, bílá 1 x 90
Návod k obsluze a bezpečnostní pokyny
Návod k obsluze a bezpečnostní pokyny 1379616 Siemens 3SU11002BF601BA0 3SU1100-2BF60-1BA0 kloubový spínač plastový přední prstenec otočný přepínač černá, bílá 1 x 90
Informace
Informace 1379616 Siemens 3SU11002BF601BA0 3SU1100-2BF60-1BA0 kloubový spínač plastový přední prstenec otočný přepínač černá, bílá 1 x 90
Popis
Selector switch, illuminable, 22 mm, round, plastic, white, selector switch, short, 2 switch positions O-I, latching, 10:30h/13:30h, with holder, 1 NO, screw terminal Selector switches SIRIUS ACT for switching and controlling electrical loads.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, 2-4 switching positions, short/long selector or rotary knob, illuminated/non-illuminated (lighting can also be retrofitted), latching/momentary contact operation.
Note: Complete unit, delivery includes holders and modules.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, 2-4 switching positions, short/long selector or rotary knob, illuminated/non-illuminated (lighting can also be retrofitted), latching/momentary contact operation.
Note: Complete unit, delivery includes holders and modules.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
