Technické parametry
- Kategorie produktu

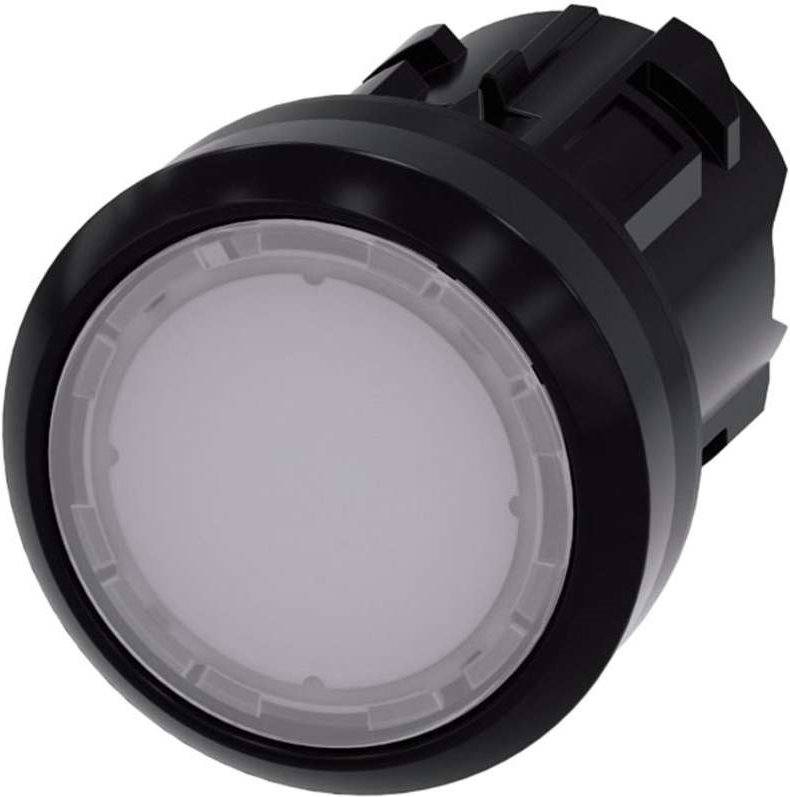

světelné tlačítko
- Vlastnosti
plochý hmatník
plastový přední prstenec
- Typ osvětlení
celoplošné podsvícení
- Barvy světla
bílá
- Barva
bílá
- Potisk (motiv)
žádný
- Připojení
externí kontaktní prvek
externí LED prvek
- Forma, tvar
Kulaté
- Funkce
bez aretace
- Mechanická životnost
3000000
- Montážní Ø
22 mm
IP66
IP67
IP69K
- Min. teplota
-25 °C
- Max. teplota
+70 °C
- Šířka
29.5 mm
- V
29.5 mm
- Obsah
1 ks
- Rozm.
(š x v) 29.5 mm x 29.5 mm
- Splňuje RoHS
ano
- Hmotnost
19 g
- Typ
3SU1001-0AB60-0AA0
22.3 mm
White
ANO
1
NE
NE
Black
Other
NE
Plastic
ANO
Round
NE
Other
Ke stažení
List technických údajů
List technických údajů 1379569 Siemens 3SU10010AB600AA0 3SU1001-0AB60-0AA0 světelné tlačítko plochý hmatník, plastový přední prstenec bílá 1 ks
Návod k obsluze a bezpečnostní pokyny
Návod k obsluze a bezpečnostní pokyny 1379569 Siemens 3SU10010AB600AA0 3SU1001-0AB60-0AA0 světelné tlačítko plochý hmatník, plastový přední prstenec bílá 1 ks
Informace
Informace 1379569 Siemens 3SU10010AB600AA0 3SU1001-0AB60-0AA0 světelné tlačítko plochý hmatník, plastový přední prstenec bílá 1 ks
Popis
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, illuminated/non-illuminated, with/without inscription, latching/momentary contact operation, various button and front ring heights.
Note: Single device, please order holders and modules separately.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
