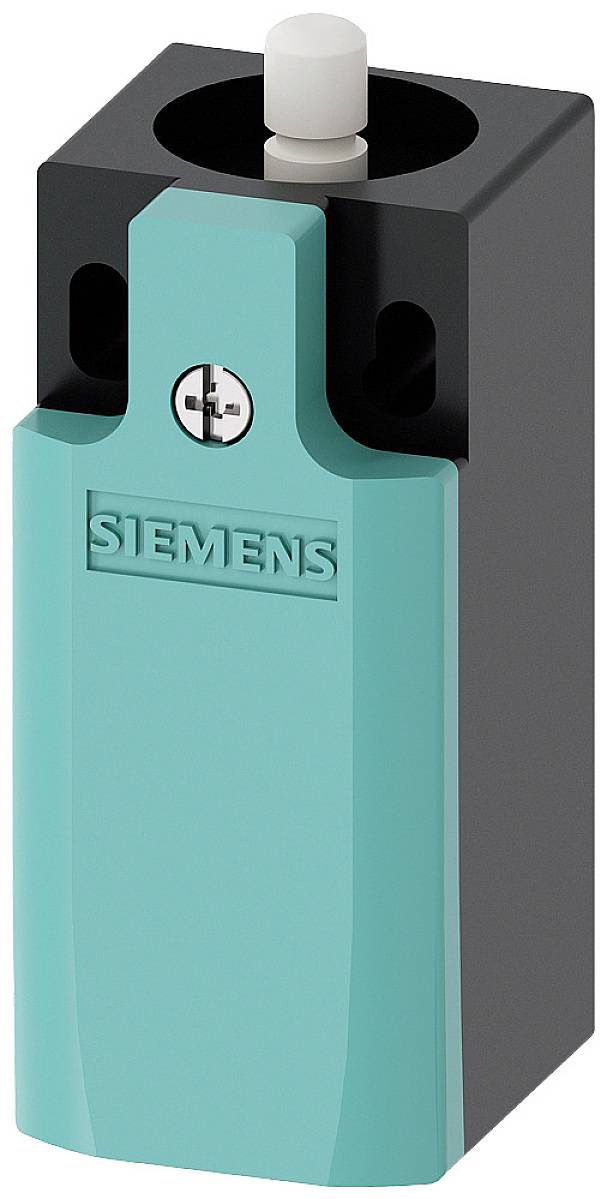

Siemens 3SE52320LC05 3SE5232-0LC05 koncový spínač 240 V/AC 1.5 A zdvihátko bez aretace IP67 1 ks
EAN:
Označení výrobce:
Objednací číslo:
Datasheety: (PDF)
Množství (Ks)
Sleva
Cena balení (Bez DPH.)
1
-
660,33 Kč
3
4% = 28,73 Kč
631,60 Kč
Množstevní slevy se liší podle prodejce
Ušetříte 0,00 Kč
Počet
Celková cena (660,33 Kč / kus)
660,33 Kč
Bez DPH.
14denní lhůta pro vrácení zboží je zahrnuta v ceně
Technické parametry
- Druh obalu
Piece
- Kategorie produktu
koncový spínač
- Připojení
šroubovací
- Typ sepnutí
zdvihátko
- Spínací napětí
240 V/AC
- Spínací proud (max.)
1.5 A
- Typ kontaktu
1 spínací kontakt
2 rozpínací kontakty
- Vzdálenost kontaktů
Uvolňovací dotek
- Funkce
bez aretace
IP67
- Rozměry závitu
M20
- Materiál
plast
- Šířka
31 mm
- Typ
3SE5232-0LC05
- Obsah
1 ks

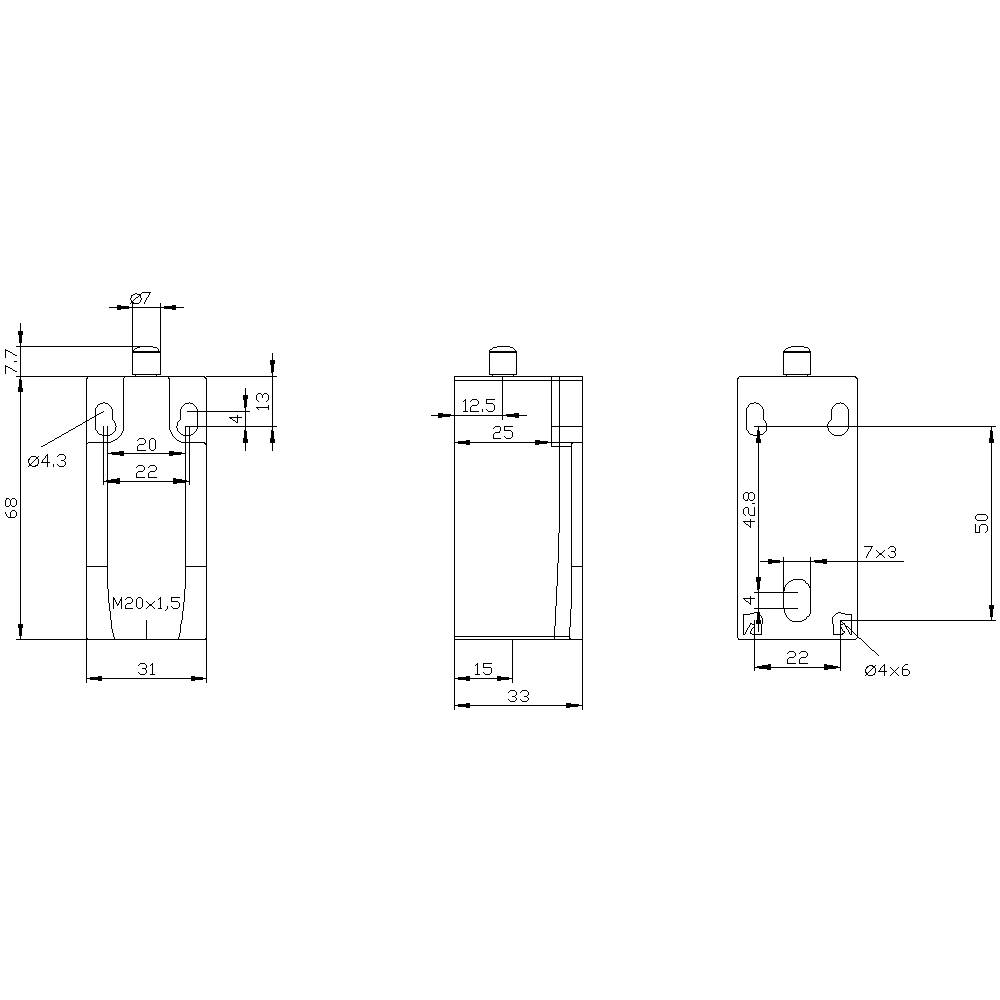

- Rozm.
(d x š x v) 31 x 31 x 68 mm
- Splňuje RoHS
ano
- V
68 mm
- Délka
31 mm
- Hloubka
33 mm
- Spínací napětí
400 V/AC
- Spínací proud
10 A
- Typ
3SE5232-0LC05
- Připojení
Šroubový spoj M20 x 1,5 mm
- Provozní teplota
-25 až +85 °C
- Pouzdro
Plastový kryt
Quick-break switch
Plastic
ANO
Other
NE
None
None
None
Cuboid
IP65
ANO
2
Plunger
None
NE
6 A
0.55 A
3 A
31 mm
33 mm
75.7 mm
NE
-25-85 °C
2
1
0
Roller cam straight
12
- UKCA
Ano
Ke stažení
List technických údajů
List technických údajů 703033 Siemens 3SE52320LC05 3SE5232-0LC05 koncový spínač 240 V/AC 1.5 A zdvihátko bez aretace IP67 1 ks
Návod k obsluze a bezpečnostní pokyny
Návod k obsluze a bezpečnostní pokyny 703033 Siemens 3SE52320LC05 3SE5232-0LC05 koncový spínač 240 V/AC 1.5 A zdvihátko bez aretace IP67 1 ks
Popis
position switch plastic enclosure according to DIN EN 50047, 31 mm device connection 1 x (M20 x 1.5) 1 NO/2 NC quick action contacts rounded plunger, form B Mechanical position switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
The modular design of the 3SE5 position switches permits a host of variants with a small number of bearing types. The wide variety of plug-in connectors and rollers meets almost all everyday requirements in industry. LEDs indicate the current state of the device. Thanks to quick-connect technology, the time required for connection can be considerably reduced. Operating points and mounting in accordance with EN 50047 and EN 50041. The devices have worldwide approval (IEC, UL). With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met. The integrated ASIsafe electronics requires a low current input.
Various enclosure sizes, with different contacts, are available in plastic or metal, or compact design. Some versions are optionally available with an LED status display and M12 plug. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio.

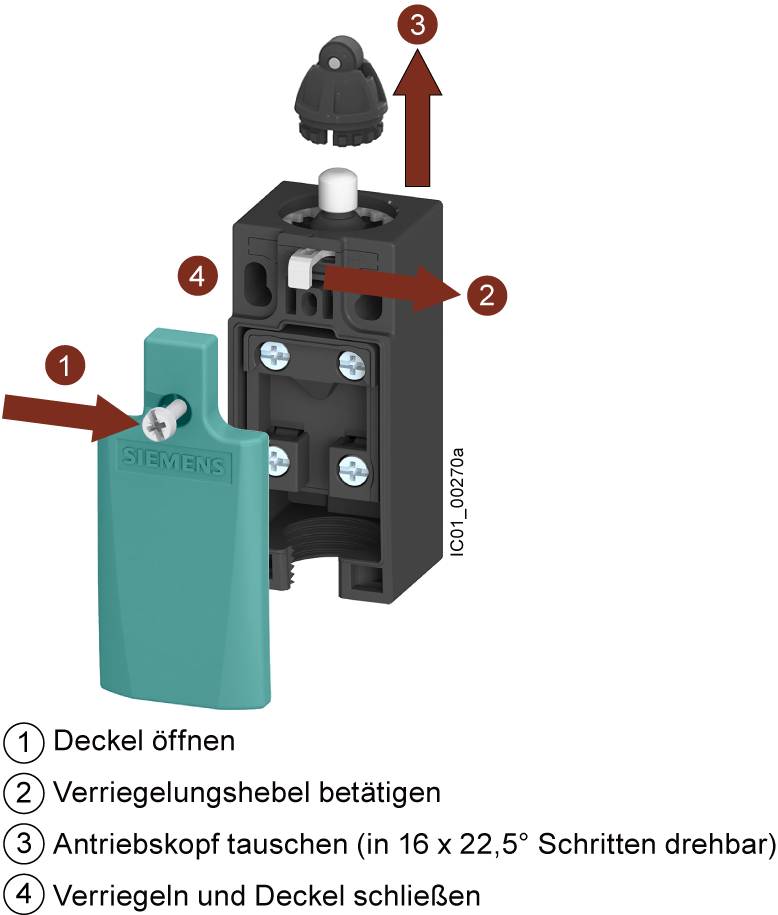

Depending on the design, actuator heads and plug-in connectors, as well as other mounting/connection accessories, are available.
Safety is a SIRIUS business.
The modular design of the 3SE5 position switches permits a host of variants with a small number of bearing types. The wide variety of plug-in connectors and rollers meets almost all everyday requirements in industry. LEDs indicate the current state of the device. Thanks to quick-connect technology, the time required for connection can be considerably reduced. Operating points and mounting in accordance with EN 50047 and EN 50041. The devices have worldwide approval (IEC, UL). With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met. The integrated ASIsafe electronics requires a low current input.
Various enclosure sizes, with different contacts, are available in plastic or metal, or compact design. Some versions are optionally available with an LED status display and M12 plug. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio.
Depending on the design, actuator heads and plug-in connectors, as well as other mounting/connection accessories, are available.
Safety is a SIRIUS business.
