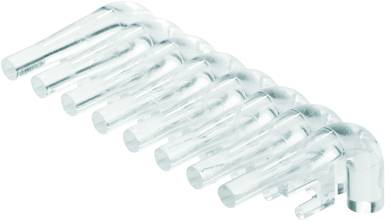

PCB plug-in connector, Accessories, Flood-light display, No. of poles: 8 SC 3.81 FLA 2.3/16 1979740000 Weidmüller Množst
EAN:
Označení výrobce:
Objednací číslo:
Hmotnost
1.48 g
Číslo výrobce
1979740000
Obsah
50 ks
Řada
BL/SL
Typ
SC 3.81 FLA 2.3/16
Datasheety: (PDF)
Množství (Set(y))
Sleva
Cena balení (Bez DPH.)
1
-
1 280,17 Kč
3
3% = 41,61 Kč
1 238,56 Kč
5
5% = 58,25 Kč
1 221,92 Kč
10
5% = 69,26 Kč
1 210,91 Kč
Množstevní slevy se liší podle prodejce
Ušetříte 0,00 Kč
Počet (velikost balení 50 ks)
Celková cena (25,60 Kč / kus)
1 280,17 Kč
Bez DPH.
14denní lhůta pro vrácení zboží je zahrnuta v ceně
Hlavní benefity
PCB plug-in connector, Accessories, Flood-light display, No. of poles: 8
Dodatečné informace:
Technické parametry
- Hmotnost
1.48 g
- Číslo výrobce
1979740000
- Obsah
50 ks
- Řada
BL/SL
- Typ
SC 3.81 FLA 2.3/16
- V
95 mm
- Délka
42 mm
- Šířka
80 mm
- Průmyslové balení
Ano
- Počet pinů
8
- UKCA
bezvýznamný
Ke stažení
List technických údajů
List technických údajů 390487 PCB plug-in connector, Accessories, Flood-light display, No. of poles: 8 SC 3.81 FLA 2.3/16 1979740000 Weidmüller Množst
Návod k obsluze a bezpečnostní pokyny
Návod k obsluze a bezpečnostní pokyny 390487 PCB plug-in connector, Accessories, Flood-light display, No. of poles: 8 SC 3.81 FLA 2.3/16 1979740000 Weidmüller Množst
Popis
Effective: the link between LED and front panel.
Floodlight indicators allow users to monitor the switching states without requiring a special design: optical plastic directs the light from standard LEDs around a bend into the connectors or through the front plate.
The fibre-optic elements are simply clipped behind the relevant 90° bend male connectors (90° outlet direction). Versions with different incoming light beam heights achieve maximum light efficiency for LEDs with different designs or heights.
The advantages compared to conventional solutions:
No additional LED circuit board required behind the front panelNo "long-legged" LEDs with separate mounting requiredBent fibre-optic cable line for maximum light efficiencyUncomplicated front plate bore holes due to circular shape of outgoing light beamEasy to maintain correct clearance and creepage distance Can be partitioned for smaller pole numbers
The result: simplified manufacturing process, reduced costs and simplified design
Floodlight indicators allow users to monitor the switching states without requiring a special design: optical plastic directs the light from standard LEDs around a bend into the connectors or through the front plate.
The fibre-optic elements are simply clipped behind the relevant 90° bend male connectors (90° outlet direction). Versions with different incoming light beam heights achieve maximum light efficiency for LEDs with different designs or heights.
The advantages compared to conventional solutions:
No additional LED circuit board required behind the front panelNo "long-legged" LEDs with separate mounting requiredBent fibre-optic cable line for maximum light efficiencyUncomplicated front plate bore holes due to circular shape of outgoing light beamEasy to maintain correct clearance and creepage distance Can be partitioned for smaller pole numbers
The result: simplified manufacturing process, reduced costs and simplified design
