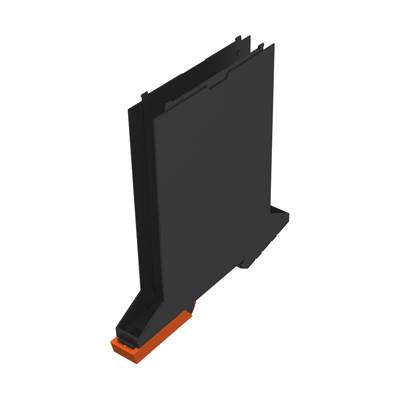

Electronics housings, OMNIMATE Housing - series CH20MBlack, Base element, Width: 12 mm
EAN:
Označení výrobce:
Objednací číslo:
Druh obalu
Piece
Kategorie produktu
základní prvek pouzdra na DIN lištu
Materiál
plast
Šířka
12.5 mm
V
109.3 mm
Datasheety: (PDF)
Počet (velikost balení 14 ks)
Celková cena (114,21 Kč / kus)
1 599,00 Kč
Včetně DPH.
Už jen 5 Set(y) skladem!
Hlavní benefity
Electronics housings, OMNIMATE Housing - series CH20MBlack, Base element, Width: 12 mm
Dodatečné informace:
Technické parametry
- Druh obalu
Piece
- Kategorie produktu
základní prvek pouzdra na DIN lištu
- Vlastnosti
uzavřená
- Materiál
plast
- Délka
107.4 mm
- Šířka
12.5 mm
- V
109.3 mm
- Rozměry
12.5 x 109.3 x 108 mm
- Obsah
14 ks
- Průmyslové balení
Ano
- Rozm.
(d x š x v) 107.4 x 12.5 x 109.3 mm
- Splňuje RoHS
ano
- Hloubka
108 mm
- Typ
CH20M12 B BK/OR
- Hmotnost
31.47 g
- UKCA
bezvýznamný
Ke stažení
List technických údajů
List technických údajů 295473 Electronics housings, OMNIMATE Housing - series CH20MBlack, Base element, Width: 12 mm
Návod k obsluze a bezpečnostní pokyny
Návod k obsluze a bezpečnostní pokyny 295473 Electronics housings, OMNIMATE Housing - series CH20MBlack, Base element, Width: 12 mm
Popis
Superior efficiency, flexibility and design - the "standard tailor-made fit"
When selecting a housing design, flexibility is a key factor. Other important criteria are: scalability, customized design, innovative functionality and cost efficiency. You need a choice which offers the maximum performance with the minimum overhead.
The CH20M12 modular electronics housing is the "small" option amongst the "large" housing solutions for compact electronics applications.
The entire system is characterized by excellence: outstanding scalability and flexibility, a high security level, innovative application functionality and a variety of practical details.
Quicker installation with features such as "Wire ready" the universal multi-tool screw headUser-friendly operations: with clear and permanent labelling and extra marking possibilities, integrated release clip or transparent coverMaximum interference immunity with EMC-compliant construction featuring deeply overlapping module joint edges made from high-performance plastic High operational reliability with the unique Auto-Set coding system and featuring double-sided touch protection on the pin header and socket blocks
CH20M - a compact name for the most flexible system available on the market. It doesn't just stand for "Component Housing IP20 Modular".
CH20M also stands for efficiency and innovation throughout design, production and use.
Download: PCB reference layout
When selecting a housing design, flexibility is a key factor. Other important criteria are: scalability, customized design, innovative functionality and cost efficiency. You need a choice which offers the maximum performance with the minimum overhead.
The CH20M12 modular electronics housing is the "small" option amongst the "large" housing solutions for compact electronics applications.
The entire system is characterized by excellence: outstanding scalability and flexibility, a high security level, innovative application functionality and a variety of practical details.
Quicker installation with features such as "Wire ready" the universal multi-tool screw headUser-friendly operations: with clear and permanent labelling and extra marking possibilities, integrated release clip or transparent coverMaximum interference immunity with EMC-compliant construction featuring deeply overlapping module joint edges made from high-performance plastic High operational reliability with the unique Auto-Set coding system and featuring double-sided touch protection on the pin header and socket blocks
CH20M - a compact name for the most flexible system available on the market. It doesn't just stand for "Component Housing IP20 Modular".
CH20M also stands for efficiency and innovation throughout design, production and use.
Download: PCB reference layout
