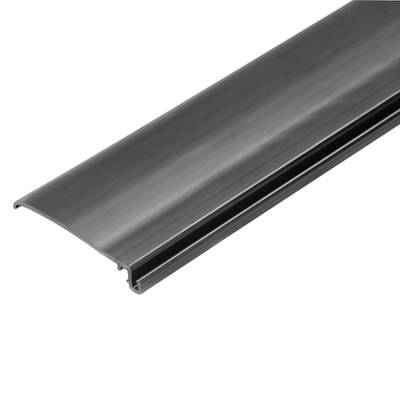

Weidmüller CH20M BUS-ADP TS 35/250 kryt pouzdra na DIN lištu pro montáž na DIN lištu 250 x 39.5 x 7 x 7 plast 10 ks Piec
Druh obalu
Piece
Kategorie produktu
kryt pouzdra na DIN lištu
Materiál
plast
Šířka
39.5 mm
V
7 mm
Datasheety: (PDF)
EAN:
Označení výrobce:
Objednací číslo:
Počet (velikost balení 10 ks)
Celková cena (515,50 Kč / kus)
5 155,00 Kč
Včetně DPH.
Doprava zdarma
Ověřený prodejce s technickou podporou
Hlavní benefity
Electronics housings, OMNIMATE Housing - series CH20M , Cover profile, Width: 39,5 mm
Dodatečné informace:
Technické parametry
- Druh obalu
Piece
- Kategorie produktu
kryt pouzdra na DIN lištu
- Vlastnosti
pro montáž na DIN lištu
- Materiál
plast
- Délka
250 mm
- Šířka
39.5 mm
- V
7 mm
- Obsah
10 ks
- Průmyslové balení
Ano
- Rozm.
(d x š x v) 250 x 39.5 x 7 mm
- Splňuje RoHS
ano
- Hloubka
7 mm
- Typ
CH20M BUS-ADP TS 35/250
- Hmotnost
25 g
- UKCA
bezvýznamný
Ke stažení
List technických údajů
List technických údajů 320456 Weidmüller CH20M BUS-ADP TS 35/250 kryt pouzdra na DIN lištu pro montáž na DIN lištu 250 x 39.5 x 7 x 7 plast 10 ks Piec
Návod k obsluze a bezpečnostní pokyny
Návod k obsluze a bezpečnostní pokyny 320456 Weidmüller CH20M BUS-ADP TS 35/250 kryt pouzdra na DIN lištu pro montáž na DIN lištu 250 x 39.5 x 7 x 7 plast 10 ks Piec
Popis
The integrated rail bus for the modular electronics housing system
When supplying, connecting or distributing within modular applications, the rail bus can replace the tedious individual wiring process with a flexible and uninterrupted system-wide solution.
The system bus is securely integrated within the 35-mm standard mounting rail. The SMD-bus contact block can be reflow-soldered so that it can be completely automatically processed during the component assembly. The resistant, gold-plated contact surfaces ensure a permanent and reliable contact for all housing widths.
Unlimited scalability The integrated connection solution covers all system widths: from the 6-mm slice to the 67-mm large-area housing.Easy to service during installation It's easy to replace a module, even in existing modules groups – without any influence on the neighbouring modules.Universal integration The uninterrupted system bus is securely integrated within the 35-mm standard mounting rail.Maximum availability Five fully-galvanized and partially gold-plated twin-arched contacts are used to establish a permanent contact to the rail bus. THR solder flanges ensure that the connection to the circuit board is stable.
When supplying, connecting or distributing within modular applications, the rail bus can replace the tedious individual wiring process with a flexible and uninterrupted system-wide solution.
The system bus is securely integrated within the 35-mm standard mounting rail. The SMD-bus contact block can be reflow-soldered so that it can be completely automatically processed during the component assembly. The resistant, gold-plated contact surfaces ensure a permanent and reliable contact for all housing widths.
Unlimited scalability The integrated connection solution covers all system widths: from the 6-mm slice to the 67-mm large-area housing.Easy to service during installation It's easy to replace a module, even in existing modules groups – without any influence on the neighbouring modules.Universal integration The uninterrupted system bus is securely integrated within the 35-mm standard mounting rail.Maximum availability Five fully-galvanized and partially gold-plated twin-arched contacts are used to establish a permanent contact to the rail bus. THR solder flanges ensure that the connection to the circuit board is stable.
