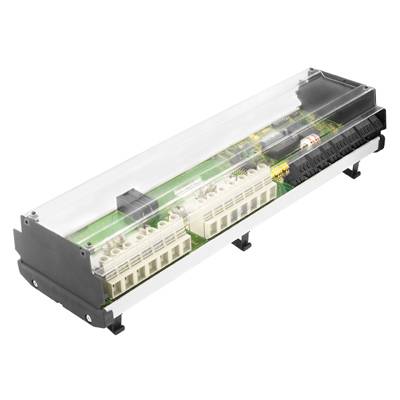

Ausloseblock 1238130000 TRANSCLINIC 14I+ Weidmüller Množství: 1 ks
EAN:
Označení výrobce:
Objednací číslo:
Datasheety: (PDF)
Počet
Celková cena (22 295,00 Kč / kus)
22 295,00 Kč
Včetně DPH.
Doprava zdarma
Už jen 5 Ks skladem!
Hlavní benefity
Ausloseblock
- 14 TRANSCLINIC I+
Technické parametry
- Druh obalu
Piece
- Typ
TRANSCLINIC 14I+
- Připojení
KONEKTOR
- Hmotnost
1123 g
- Číslo výrobce
1238130000
- Obsah
1 ks
- Šířka
109.5 mm
- V
92.2 mm
- Délka
370 mm
- Splňuje RoHS
ano
- Provedení
provedení konektoru
- Typ
14 TRANSCLINIC I+
Ke stažení
List technických údajů
List technických údajů 201865 Ausloseblock 1238130000 TRANSCLINIC 14I+ Weidmüller Množství: 1 ks
Návod k obsluze a bezpečnostní pokyny
Návod k obsluze a bezpečnostní pokyny 201865 Ausloseblock 1238130000 TRANSCLINIC 14I+ Weidmüller Množství: 1 ks
Popis
String monitoring with Transclinic xi+
A system that constantly monitors the performance of photovoltaic facilities.
The Transclinic xi+ series continuously monitors the power from single strings or groups of strings as well as the voltage of a Photovoltaic system and thereby enables detailed monitoring of the system. Negative influences, which lead to reduced output, can be detected immediately, allowing rapid repairs or adjustments to be made to the system.
PV-PlantSmart software for data collection and monitoring of photovoltaic plantsThe software consists of two program modules:Configuration moduleThe configuration module means that you have a simple way to implement, organise, group and
re-name the devices and system components (device connection boxes, inverters,
meters, weather sensors etc.)
The users can easily specify e-mail or SMS text messages that are to be sent out automatically as an alarm to any specific group.
The configuration module also accesses the data needed for monitoring the photovoltaic facility online.
Visualisation module
The visualisation module is used to view and save the online data that has been sent to the PC. The data describing the current states of the photovoltaic facility can be saved in the mySQL database and displayed graphically to permit more detailed analysis. The data can also be exported as an Excel or PDF file and then be sent in an e-mail. It is also possible to administer the alarms
and their acknowledgements; this permits the schedule of the corresponding service procedures to be accurately documented.
A system that constantly monitors the performance of photovoltaic facilities.
The Transclinic xi+ series continuously monitors the power from single strings or groups of strings as well as the voltage of a Photovoltaic system and thereby enables detailed monitoring of the system. Negative influences, which lead to reduced output, can be detected immediately, allowing rapid repairs or adjustments to be made to the system.
PV-PlantSmart software for data collection and monitoring of photovoltaic plantsThe software consists of two program modules:Configuration moduleThe configuration module means that you have a simple way to implement, organise, group and
re-name the devices and system components (device connection boxes, inverters,
meters, weather sensors etc.)
The users can easily specify e-mail or SMS text messages that are to be sent out automatically as an alarm to any specific group.
The configuration module also accesses the data needed for monitoring the photovoltaic facility online.
Visualisation module
The visualisation module is used to view and save the online data that has been sent to the PC. The data describing the current states of the photovoltaic facility can be saved in the mySQL database and displayed graphically to permit more detailed analysis. The data can also be exported as an Excel or PDF file and then be sent in an e-mail. It is also possible to administer the alarms
and their acknowledgements; this permits the schedule of the corresponding service procedures to be accurately documented.
